สินค้ามือ 2, ไม่มีกล่อง, มีฝาหลัง, MB ไม่มีกล่อง, CPU ไม่มีกล่อง
คุณสมบัติสินค้า
CPU: INTEL CORE I5-4460 3.2GHz (พร้อมฝาหลัง)
Brand Intel
Model Core i5 - 4460
Socket 1150
# of Cores 4
# of Threads 4
Frequency 3.2 GHz
Turbo Frequency 3.4 GHz
Cache 6 MB Intel Smart Cache
Integrated Graphics Intel HD Graphics 4600
CPU Cooler Yes
Package Dimension (W x D x H) : 10.00 x 12.00 x 8.00 cm
Gross Weight 0.25 KG
Volume 960.00 cm3

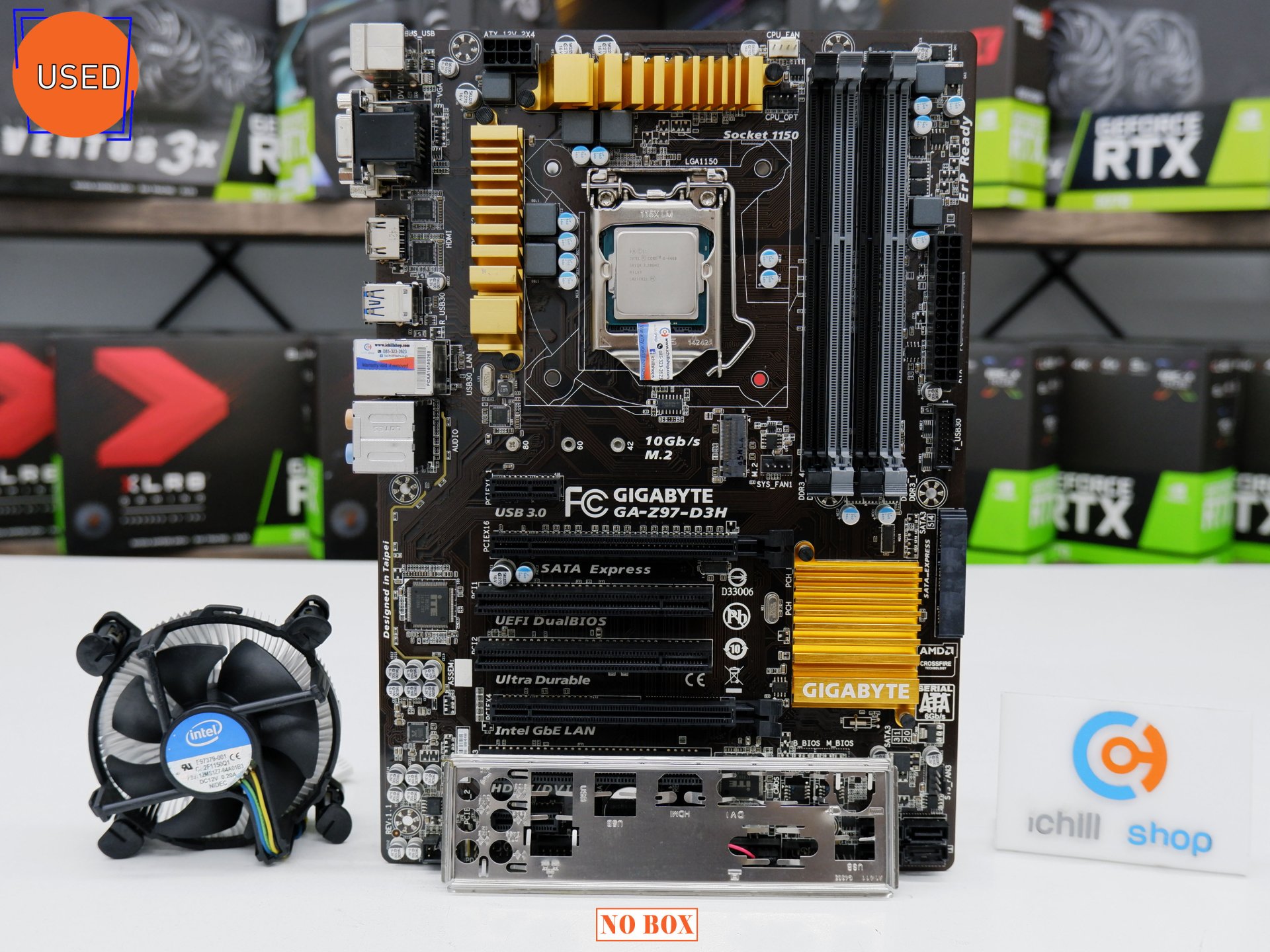

MB: GIGABYTE GA-Z97-D3H NO BOX (พร้อมฝาหลัง)
Brand GIGABYTE
Model GA-Z97-D3H
CPU Support Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
Socket 1150
Storage 2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel® Z97 Express Chipset
Memory Support 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Support for Extreme Memory Profile (XMP) memory modules
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz * Support for HDMI 1.4a version.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
LAN Intel® GbE LAN chip (10/100/1000 Mbit)
Form Factor ATX Form Factor; 30.5cm x 21.4cm
Operating System Support Support for Windows 8.1/8/7
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Sound Realtek® ALC1150 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
PCIe 16x (at x16 mode) 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PS2 1 x PS/2 keyboard/mouse port
PCIe 1x 2 x PCI Express x1 slots (The PCIEX4 and the PCI Express x1 slots conform to PCI Express 2.0 standard.)
VGA / D-Sub Port 1 x D-Sub port
USB 3.0 back Panel 4 x USB 3.0/2.0 ports
SATA 6 x SATA 6Gb/s connectors
1 x SATA Express connector
HDMI Port 1 x HDMI port
USB 2.0 back Panel 2 x USB 2.0/1.1 ports
DVI Port 1 x DVI-D port
PCI 3 x PCI slots
PCIe 16x (at x4 mode) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed. * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.)
