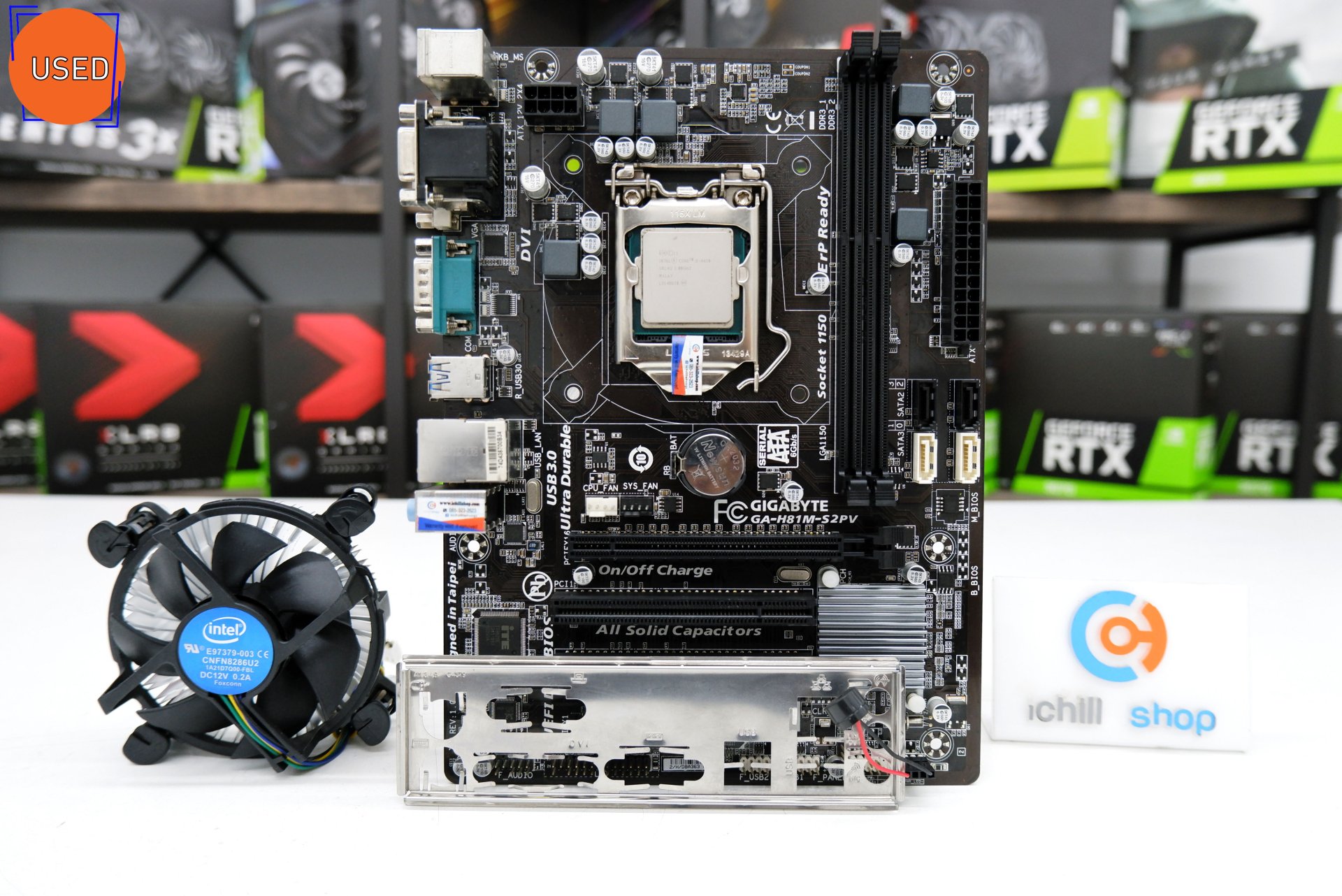

CPU SUPPORT SUPPORT FOR INTEL CORE I7 PROCESSORS/INTEL CORE I5 PROCESSORS/INTEL CORE I3 PROCESSORS/INTEL PENTIUMPROCESSORS/INTEL CELERON
SOCKET 1150
STORAGE
2 X 64 MBIT FLASH
USE OF LICENSED AMI EFI BIOS
SUPPORT FOR DUALBIOS™
PNP 1.0A, DMI 2.7, WFM 2.0, SM BIOS 2.7, ACPI 5.0
CHIPSET INTEL H81 EXPRESS CHIPSET
MEMORY SUPPORT
2 X 1.5V DDR3 DIMM SOCKETS SUPPORTING UP TO 16 GB OF SYSTEM MEMORY * DUE TO A WINDOWS 32-BIT OPERATING SYSTEM LIMITATION, WHEN MORE THAN 4 GB OF PHYSICAL MEMORY IS INSTALLED, THE ACTUAL MEMORY SIZE DISPLAYED WILL BE LESS THAN THE SIZE OF THE PHYSICAL MEMORY INSTALLED.
DUAL CHANNEL MEMORY ARCHITECTURE
SUPPORT FOR DDR3 1600/1333 MHZ MEMORY MODULES
SUPPORT FOR NON-ECC MEMORY MODULES
SUPPORT FOR EXTREME MEMORY PROFILE (XMP) MEMORY MODULES
GRAPHICS
1 X D-SUB PORT, SUPPORTING A MAXIMUM RESOLUTION OF 1920X1200
1 X DVI-D PORT, SUPPORTING A MAXIMUM RESOLUTION OF 1920X1200 * THE DVI-D PORT DOES NOT SUPPORT D-SUB CONNECTION BY ADAPTER.
MAXIMUM SHARED MEMORY OF 1 GB
FSB 1600/1333 MHZ MEMORY MODULES
LAN REALTEK® GBE LAN CHIP (10/100/1000 MBIT)
FORM FACTOR MICRO ATX FORM FACTOR; 24.4CM X 18.0CM
OPERATING SYSTEM SUPPORT SUPPORT FOR WINDOWS 8/7
2 X SATA 3GB/S CONNECTORS
SOUND
REALTEK® ALC887 CODEC
HIGH DEFINITION AUDIO
2/4/5.1/7.1-CHANNEL * TO CONFIGURE 7.1-CHANNEL AUDIO, YOU HAVE TO USE AN HD FRONT PANEL AUDIO MODULE AND ENABLE THE MULTI-CHANNEL AUDIO FEATURE THROUGH THE AUDIO DRIVER.
PS2 1 X PS/2 KEYBOARD PORT
1 X PS/2 MOUSE PORT
PCIE 1X 1 X PCI EXPRESS X1 SLOT
(THE PCI EXPRESS SLOTS CONFORM TO PCI EXPRESS 2.0 STANDARD.)
