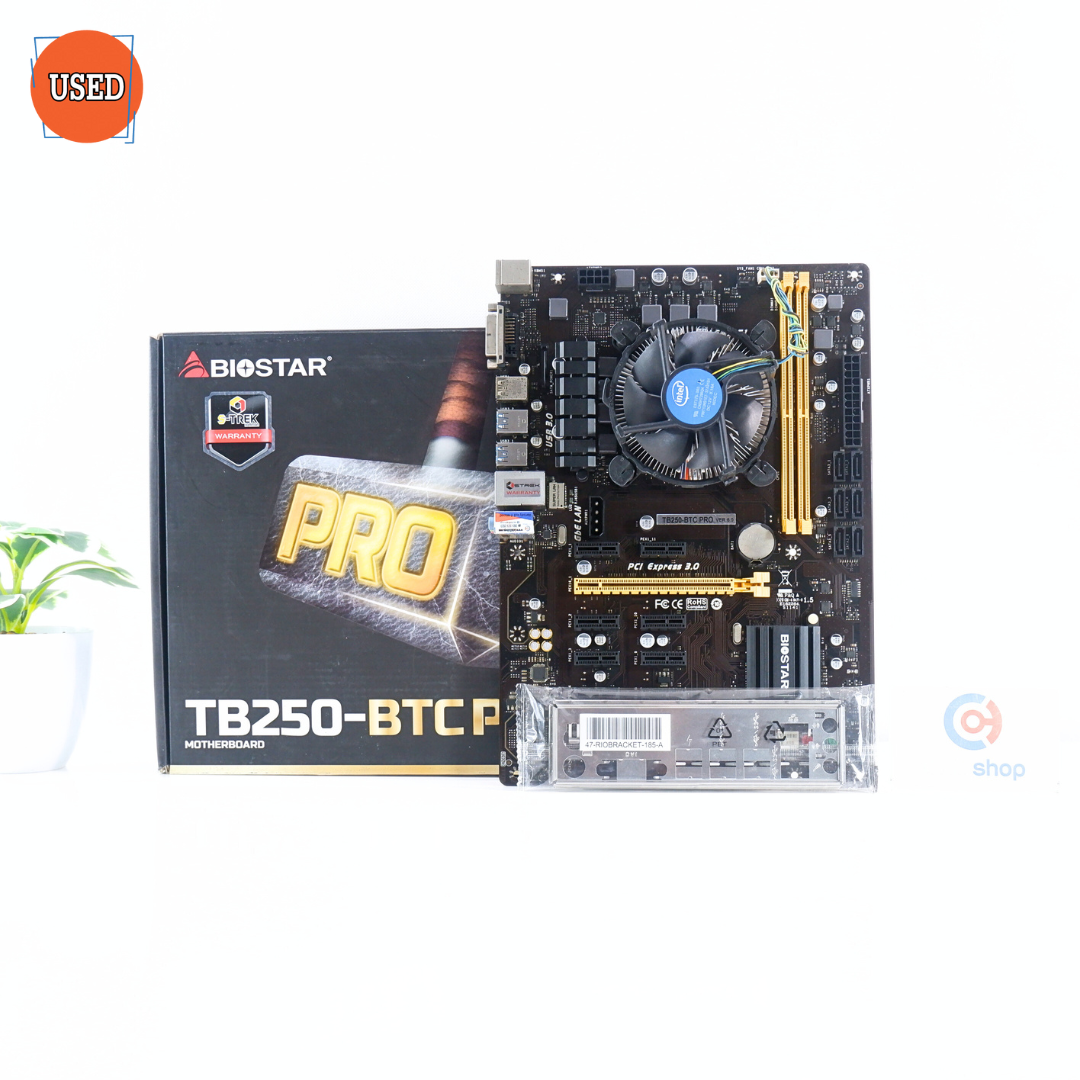

DDR4 2400 FOR 7TH GENERATION INTEL® CORE™ PROCESSOR FAMILY
INTEGRATED VIDEO
BY CPU MODEL
SUPPORTS DX12
SUPPORTS HDCP
STORAGE
6 X SATA III CONNECTOR
LAN
REALTEK RTL8111H - 10/100/1000MB/S CONTROLLER
SUPPORT SUPER LAN SURGE PROTECTION
AUDIO CODEC
REALTEK ALC887 8-CHANNEL HD AUDIO
SUPPORT HD AUDIO
USB
4 X USB 3.0 PORT
1 X USB 3.0 HEADER
2 X USB 2.0 PORT
2 X USB 2.0 PORT(ONLY 5V POWER, UP TO 1.5A)
2 X USB 2.0 HEADER
EXPANSION SLOT
1 X PCI-E 3.0 X16 SLOT
11 X PCI-E 3.0 X1 SLOT(NOTE: PEX1_6/7/8/9/10/11 SLOT ARE NOT COMPATIBLE W/ ATX STANDARD, USERS NEED EXTRA COONECTING KIT TO INSTALL VGA CARD FOR CRYPTO MINING.)
REAR I/O
1 X PS/2 MOUSE
1 X PS/2 KEYBOARD
4 X USB 3.0 PORT
2 X USB 2.0 PORT
2 X USB 2.0 PORT(ONLY 5V POWER, UP TO 1.5A)
1 X DVI-D CONNECTOR, RESOLUTION UP TO 1920 X 1200 @60HZ
1 X LAN PORT
3 X AUDIO JACKS
INTERNAL I/O
1 X USB 3.0 HEADER
2 X USB 2.0 HEADER
6 X SATA III CONNECTOR (6GB/S)
1 X SATA POWER CONNECTOR(FOR REAR USB POWER ENHANCEMENT)
1 X FRONT AUDIO HEADER
1 X FRONT PANEL HEADER
1 X CPU FAN CONNECTOR
2 X SYSTEM FAN CONNECTOR
2 X PCI-E 12V 4PIN CONNECTOR(MUST BE INSTALLED WHEN USING FOR BITCOIN MINING.)
1 X COM PORT HEADER
H/W MONITORING
CPU / SYSTEM TEMPERATURE MONITORING
CPU / SYSTEM FAN MONITORING
SMART / MANUAL CPU FAN CONTROL
SYSTEM VOLTAGE MONITORING
DIMENSION
ATX FORM FACTOR DIMENSION: 29.5CM X 21CM ( W X L )
OS SUPPORT
SUPPORTS WINDOWS 10(X64) / 11(X64) FOR INTEL 7TH GENERATION PROCESSOR
SUPPORT WINDOWS 7 / 8.1(X64) / 10(X64) / 11(X64) FOR INTEL 6TH GENERATION PROCESSOR
